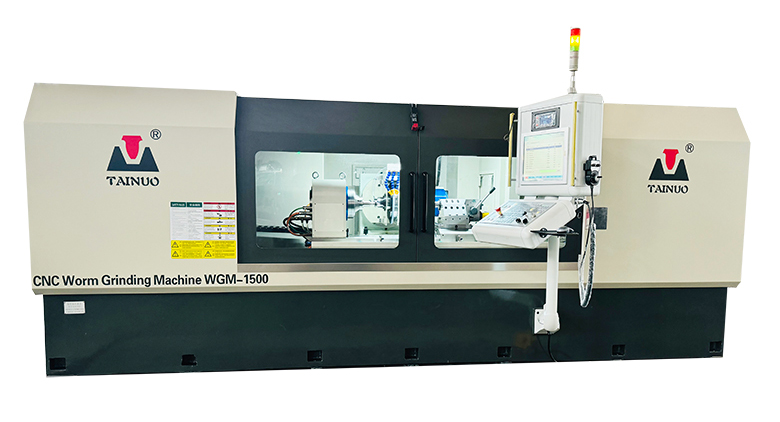

■ Introduction

● Advanced CNC supporting the precise and complex mathematical calculation

● Fine quality cast bed, 4 axes with 3 axes interpolation movement

● Z & X motion using the linear motor and encoder for closed loop control

● Torque motor table as part axis with encoder for closed loop control

● Forward and reverse grinding for high efficiency

● Forming dressing and interpolation of X and Z motion for online dressing

● Grinding wheel online balance system for motorized spindle

■ Applicable scope

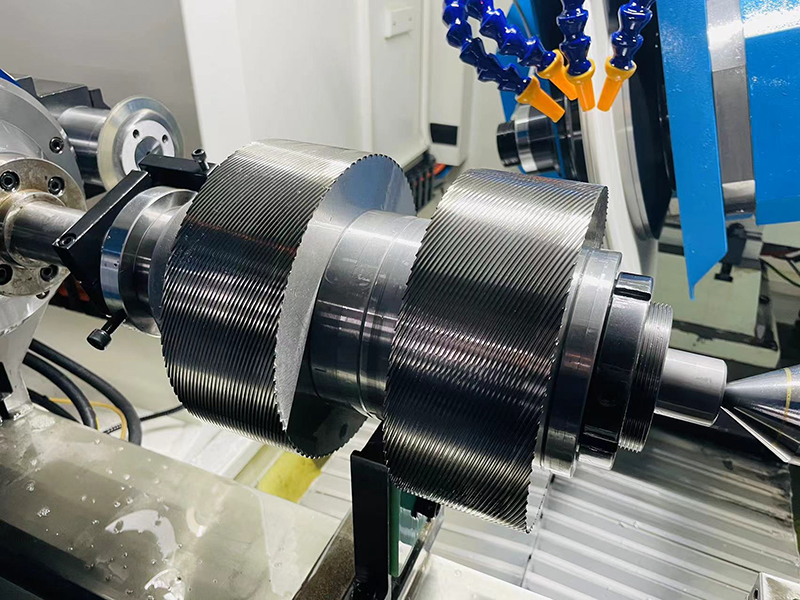

ZA/ZN/ZI/ZK/ZCworm(including dual lead worm), thread rolling taps, thread screw, electronic steering components such as EPS and more.

■ Technical specifications
